Quad Tron
VCO
ELECTRICAL SPECIFICATION V1
GENERAL PERFORMANCE SPECIFICATIONS| TEMPERATURE STABILITY OF OUTPUT FREQUENCY: | ±2% dbw of the 25°C reference frequency, from -40°C to +85°C, at any input signal level. |
| BAND EDGE ACCURACY: | ±1.5% dbw |
| LINEARITY: | ±0.2 dbw, best straight line, maintained from -40°C to +85°C |
| TIME STABILITY: | ±0.25% dbw for 8 hours @25°C after 1 minute. |
| DISTORTION: | <1.0% anywhere within the pass band from -40°C to +85°C |
| AMPLITUDE MODULATION: | <5.0% |
| INTELLIGENCE FREQUENCY RESPONSE: | ±0.1 dB of DC response for a modulation index of 5 or greater. |
INPUT SPECIFICATIONS
| INPUT IMPEDANCE: | 500 KW 's, +10% -0%, Channels 1 through 250 KW 's, +10% -0%, Channels A through H |
| INPUT VOLTAGE: | Any 5 volt range from -5 to +5 volts (specify range when ordering). Mode available when indicated on case type. |
| SOURCE IMPEDANCE SENSITIVITY: | <1.0% dbw for source impedance change of zero infinity. |
OUTPUT SPECIFICATIONS
| OUTPUT INPEDANCE: | 47 KW 's, ±10% |
| OUTPUT VOLTAGE: | 0.325 ± 0.025 volts RMS at center frequency into a load of 10 KW 's shunted by 40pf. Output will not vary more than ±10% over the temperature range of -40°C to +85°C from a 25°C reference voltage. |
| MODULATION FEEDTHROUGH: | 40 dB below output signal level. |
POWER SPECIFICATIONS
| POWER REQUIREMENTS: | +28 ±10 volts @ 3.2 ma. Max. |
| B+ STABILITY: | A + 10 volts change in the B+ supply will cause a frequency change of less than ±0.5% dbw |
| VOLTAGE PROTECTION: | ±40 volt supply voltage will not damage the unit. |

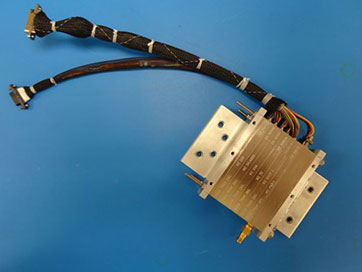

Mixer
ELECTRICAL SPECIFICATION M1
GENERAL PERFORMANCE SPECIFICATIONS| VOLTAGE GAIN: | 20 (±0.25 dB), or Customer Specified. |
| FREQUENCY REPONSE: | 300Hz to 300KHz, flat within ±0.5dB. Response to 1.0MHz available. |
| HARMONIC DISTORTION: | <0.5% at 2.0 volts RMS output. |
| TEMPERATURE STABILITY: | <±0.25 dB gain change form -40°C to +85°C |
INPUT SPECIFICATIONS
| INPUT IMPEDANCE: | 20K W's nominal. |
OUTPUT SPECIFICATIONS
| OUTPUT VOLTAGE: | >2.0 volts RMS from -40°C to +85°C and any supply voltage within 28 ±6volts |
| OUTPUT IMPEDANCE: | <500 W's |
POWER SPECIFICATIONS
| POWER REQUIREMENTS: | +28 ±6 volts @ 6 ma max |
| SUPPLY VOLTAGE STABILITY: | <±0.1 dB gain change for any supply voltage within 28 ±6 volts. |
